生物反應器及其相關 > 配件 (Accessories)

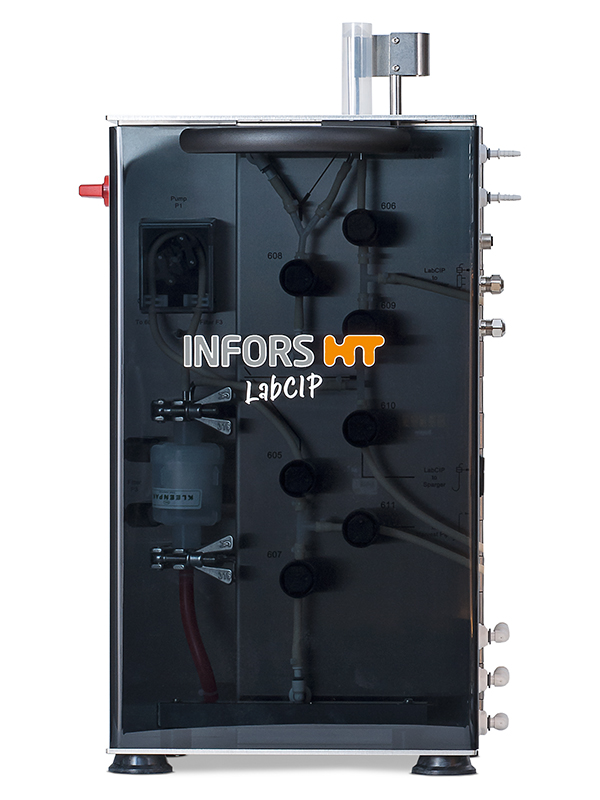

LabCip(自動清洗槽體機)

輕鬆一鍵、方便省時、效率提升



適用範圍:

1. 微生物反應試驗 (E.coli, P. pastoris, p.fluorescences)

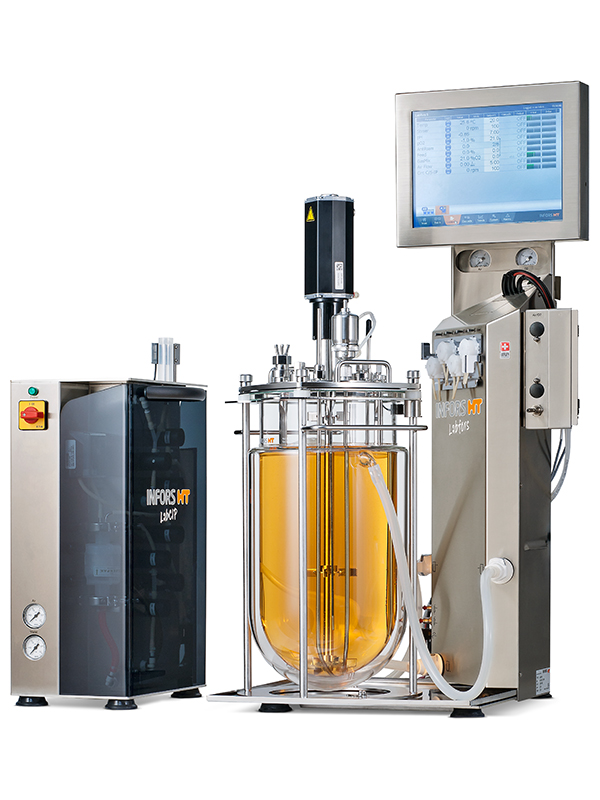

2. 與Labfors 5搭配使用


  •
  •

此系統設計已得歐美專利認證((US Pat. No. 9,399,244; European patent No. 2 789 683).) 與Labfors 5搭配使用, 該系統操作方式極其簡便, 一鍵即可自動清洗槽體且進行槽體滅菌。擁有此系統不必像以前那樣手動花時間清洗槽體,反而節省清洗時間讓試驗進度與產值提升兩倍或以上。

Brochures

客戶使用評價 Dr. Alvar Gossert

1. 自動清洗 (CIP)

2. 自動滅菌 (SIP)

3. 適合高通量試驗 High throughput

4. 容易操作 Easiest operation

5. 被認證的新型科技 Robust, proven technology

6. 節省空間 Small footprint

7. 節省人力與實驗費用 Cost-saving

1. 高通量生物反應 High throughput bioprocess

2. 發酵試驗 Fermentation

3. 高通量蛋白質表現 (eg. 抗體) High throughput protein expression

4. 模擬量產與產程條件研究 (Optimisation/scale up experiment)

5. 分析試驗 Process analytical technology (PAT)



Total volume

1.5 L, 3 L, 6 L

Dimensions (W x D x H)

455 x 375 x 740 mm

Drive

Direct drive with 150 min-1 to 1600 min-1

Temperature

+5 °C via coolant to 60 °C

Gassing

2 mass flow controllers for gassing rate (vvm) up to 2.0 min-1

Pumps

4 x configurable (fixed or variable speed) ex-works: 3 x fixed (acid, base, anti-foam), 1 x variable (feed)

Pump performance

0.0034 to 3.46 mL min-1 (standard), 0.017 to 17.16 mL min-1 0.0012 to 1.24 mL min-1

Ports

4 x 10 mm, 4 x 7.5 mm, and maximum 7 x 12 mm (Pg13.5): pH, pO2 , exhaust gas cooler, inoculation and 3 are freely available

Standard parameters

Stirrer speed, temperature, pH, pO2 , (anti-) foam, TotalFlow, GasMix, pumps 1–4 Connectivity OPC UA via Ethernet

Connectivity

OPC UA via Ethernet

更多資訊 More information

EVE software
